Rotating Electrical Connector

Rotating Electrical Connectors

- Compact, reliable and durable
- Extremely low electrical noise
- Low resistance (Less than 1 milliohm)
- Low cost
- One connector for signal and power

APPLICATIONS: A great variety of OEM machinery will benefit from the use of a Rotating Connector for power and control circuits when changing from a traditional slip ring.

Control devices	Packaging
Robotics	Wind turbines
Heated rollers	Semiconductor production
Cable reels	Laminating
Electroplating	Strain gauges
Thermocouples	Rotating Laser for LIDAR
Remote video inspection	VFD motor shaft grounding

For specific product information, please click Catalog Download

Notice: Rotating Electrical Connectors are used almost exclusively in large-scale stationary industrial type machines, so they are exempted from the restrictions of Directives WEEE (Waste Electrical and Electronic Equipment) Directive (2002/96/EC) and the RoHS (Restriction of Hazardous Substances) Directive (2002/95/EC). Please check the WEEE Directive and Annex 1B showing Category 6, or to view other categories in Annex 1B under which your application might fall.
　

Model	Conductor Poles	Current Amp.	Voltage AC/DC V	Max. Freq. MHZ	Max. RPM	Operating Temp. Max/ Min c	Rotating Torque (gm-cm)	Insulation Resistance
A1M	1	10		200	3600	60/-10	35
A1MT	1	10		200	3600	60/-10	35
A1M2	1	20		200	2000	60/-5	35
A2S	2	4	500	200	2000	60/5	75	>25MΩ
A3S	3	4	500	200	1800	60/5	100	>25MΩ
A2H	2	30	500	200	1800	60/-10	200	>25MΩ
A3M	3	4/30	500	100	1800	60/-10	200	>25MΩ
A3H	3	30	500	100	1200	60/-10	300	>25MΩ
A4H	4	4/30	500	100	1200	60/-10	400	>25MΩ
A6H	6	30	500	100	300	60/-10	700	>25MΩ
A8H	8	30	500	100	200	60/-10	1000	>25MΩ
A1HH	1	250		200	1200	60/-10	250	>25MΩ
A1H25S	1	250		200	1200	60/-10	400
A1H25PS	1	250		200	1200	60/-10	400
H83015 (Hollow type) ( ID=15 )	8	30	300	100	200	40/10	2500	>25MΩ
A1230	12	30	300	100	200	40/10	2500	>25MΩ

Catalog Download (PDF)

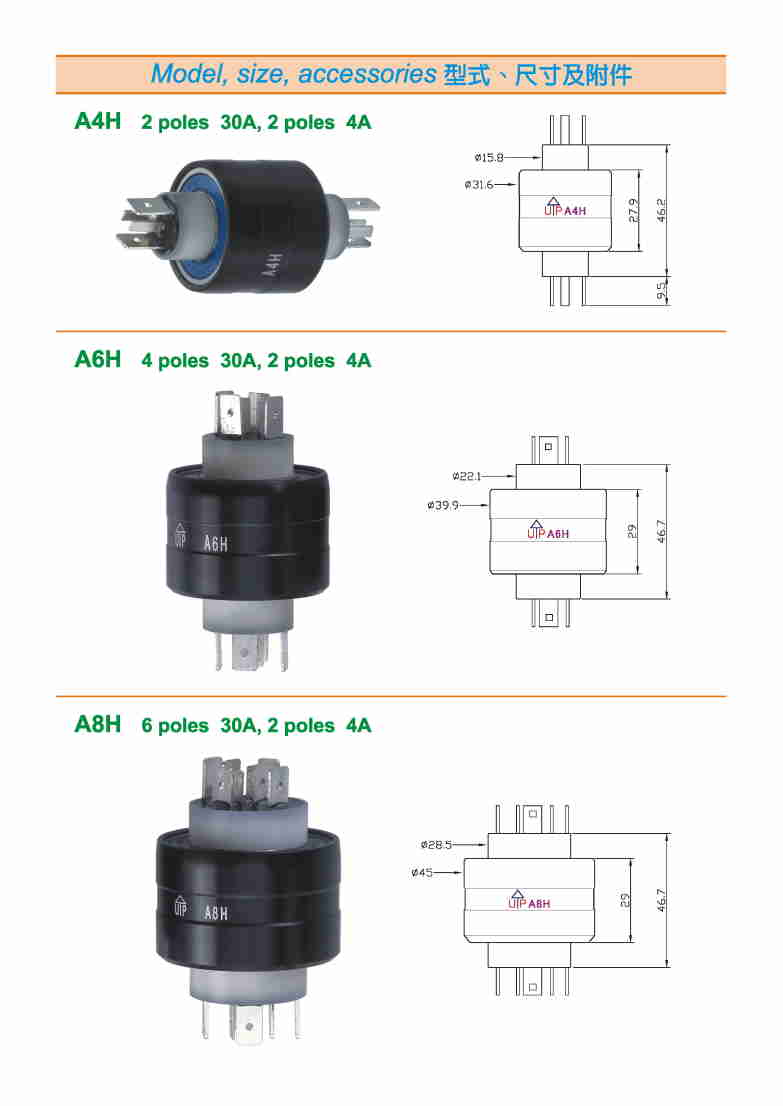

Click Photos to enlarge the catalog
